HDMI to AV to analog signal conversion board Nex Series

  • Model: TL2914
  • Shipping Weight: 10g
  • Units in Stock: 955

¥165.00









Product Description:

          FPV Aerial brushless micro single gimbal  necessary, the product is lightweight, is tailor-made for the Sony NEX series of special soft silicone wire transfer direct connection diagram transmitter, micro-single installation can rotate freely. HDMI is designed for general-purpose ultra-light weight aerial areas and volumes required design to AV digital to analog modules.
       HDMI D-type connector line, miniHDMI standard interface compatible with most devices, direct camera-powered, no external power supply; direct connection diagram pass transmitter, no HDMI cable. Using this module, the camera's HDMI output mode must be set to the AUTO automatically, some cameras do not have HDMI Resolution automatic functions may not be supported (NEX 5R without setting, can be used directly), modify the camera resolution, you must cut off all the wires and shut down and re-boot, the new settings to take effect, it may not be output correctly, the module factory have all passed inspection, welding wire has good cause any problems because the operation resulted in the module can not be used are not returned.

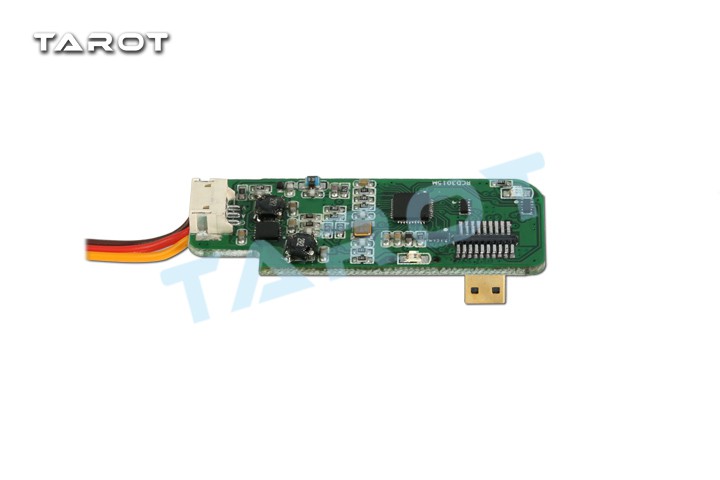

Note: The module pitch straight PCB, HDMI interface after insertion between the PCB and the camera is about 2mm, near the camera HDMI jack 2MM above projections are unable to use this module, such as the Panasonic GH2, within a lanyard on the HDMI module buckle, if not dismantled, HDMI module can not be used. Currently testing Sony Nex5 series 7 series is completely available to be verified in other cameras.

Weight: 4G (without packaging)


Add to Cart:



This product was added to our catalog on Monday 25 August, 2014.
