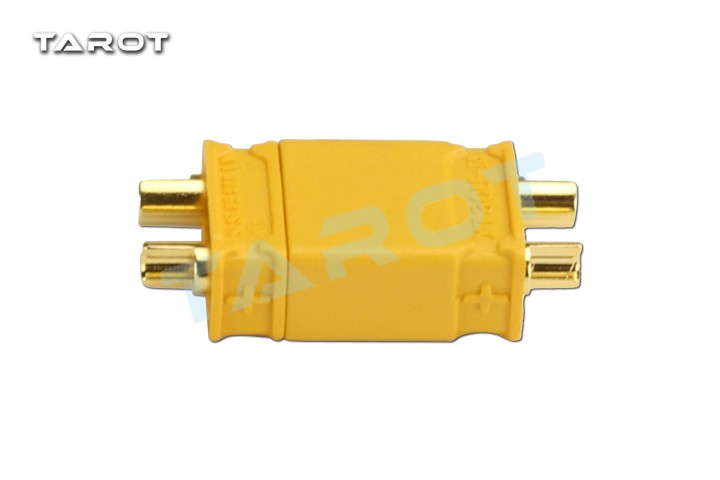

This product is the new Amass XT30U plug, on the basis of the acclaimed XT30, the production of XT30 ultra-small plug, lighter weight, smaller, internal 2mm gold plated banana plug.
Contact resistance: 0.70mΩ
Rated voltage: DC 500V
Rated / Instantaneous Current: 15A / 30A
Metal Material: Copper Gold Plated
Insulation material: PA
Flame retardant rating: UL94 V0
Recommended Applications: Battery
Recommended times: 1000 times
Recommended wire gauge: 18AWG
Applicable products: UAV

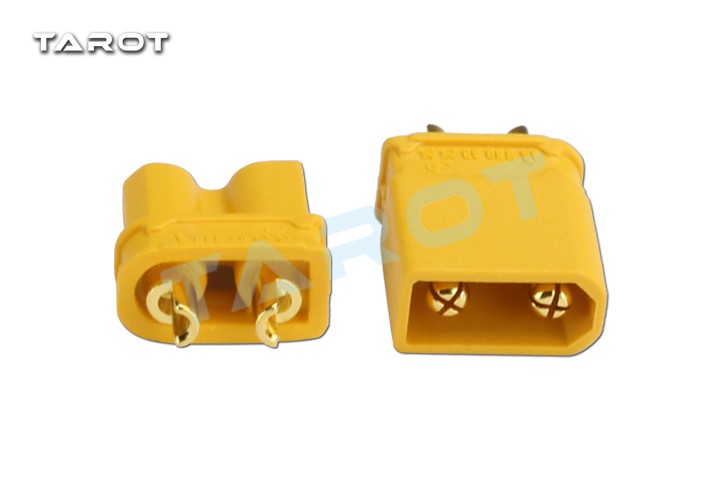

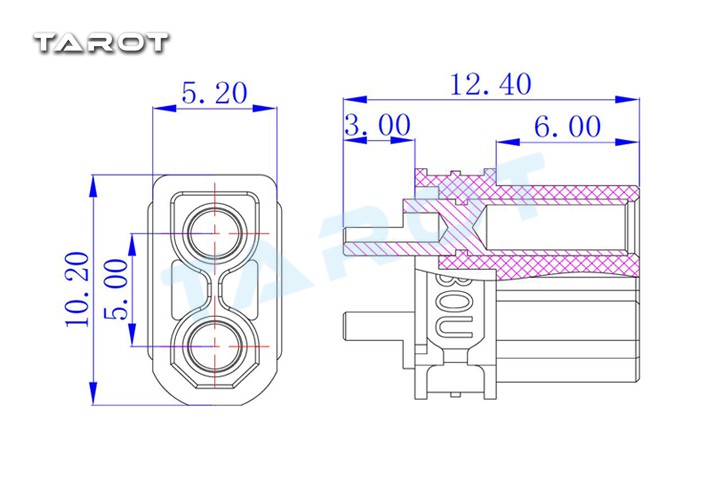

XT30U female × 1 (12 × 10 × 5MM)

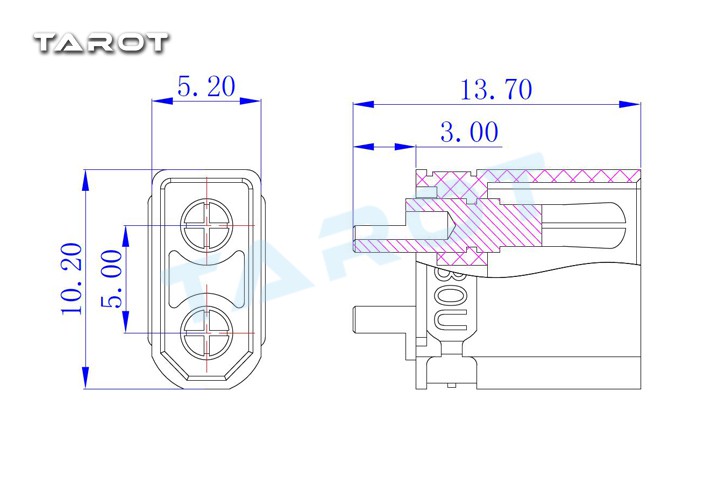

XT30U male × 1 (13.5 × 10 × 5MM)
This product was added to our catalog on Saturday 25 March, 2017.
