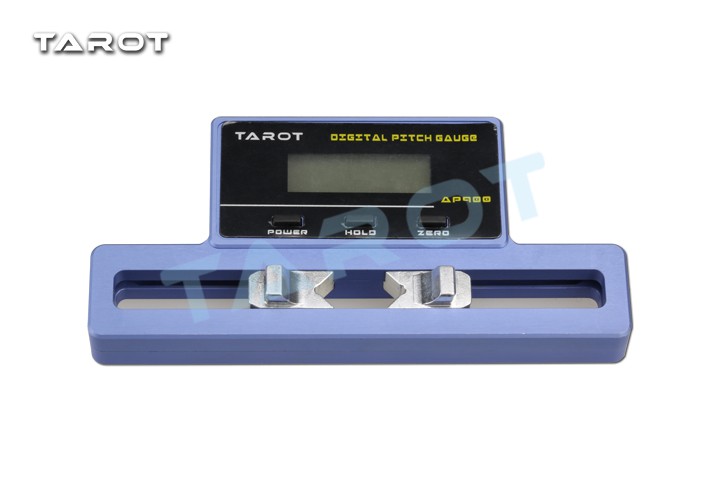

TAROT independent research and development of the new AP900 digital pitch gauge, for unbalanced wing and a balanced wing helicopter, the use of digital gyroscope can automatically detect the angle of the rotor, the white backlit LCD screen display rotor angle measurement. Shell with 6061T6 aluminum alloy full CNC processing, so that the detection angle is more accurate, TAROT optimized design, relative to the plastic models only increase the weight of 1.5 grams.
1. The use of backlit LCD display, removable split design.
2. With automatic screen reversal function.
3. Automatic detection of horizontal angle.
4. With delay angle zero and lock function.
5. Can detect angle range ± 60 °
6. Applicable 200-800mm main rotor.
7: built-in power-saving features 8 minutes after the standby power will be shut down.
8: 6061T6 aluminum alloy housing
Body Dimension/尺寸: 110x53x15mm
Suitable blade width/适用浆宽: 20mm-72mm
Detectable pitch range/角度测量范围:±60°
Resolution/测量解析度 : 0.1°
Battery/电池 Cr2032 Lithium/锂电池x2
