Miniature high-definition digital video transmission system suitable for a variety of real-time image applications require lightweight device return. Integrated encoder, receiver and antenna in one, the miniature camera to capture images in real time and converted into a radio signal back to the ground. The return signal received and displayed on the TV screen by matching dual antenna mobile receivers.
Note: All products manufactured before the test and commission the pairing, do not arbitrarily adjust the parameters.
To customize other bands can contact customer service.
HDMI supports standard video wireless transmission.
With the DR-2108 dual-antenna receiver using mobile digital image resolution 1080P, the conditions under 352MHz transmission distance can reach 9-10 km (due to environmental change from the concrete).
Wireless transmission, image delay 300-350MS.
Total power consumption of less than 12W.
Machine weighs less than 100 grams.
Using H.264 image compression technology, high-quality fine compression, up to broadcast images.
Support USB upgrade and recording, playback functions.
Typical DC12V / DC24V power supply Supply voltage range DC10V-26V.
Machine adopt separation design, placement can be chosen at random, good heat dissipation.
With dual diversity reception (automatically selects strong signal decoding), stable performance.
Excellent receiver sensitivity.
With a high-definition image picture effect, anti-multipath interference and fading strong advantage, supports a stable image transmission 230Km / h rapid traverse.

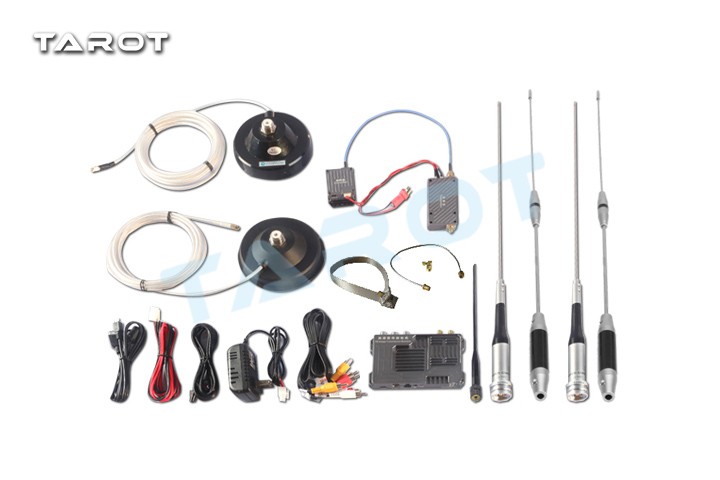

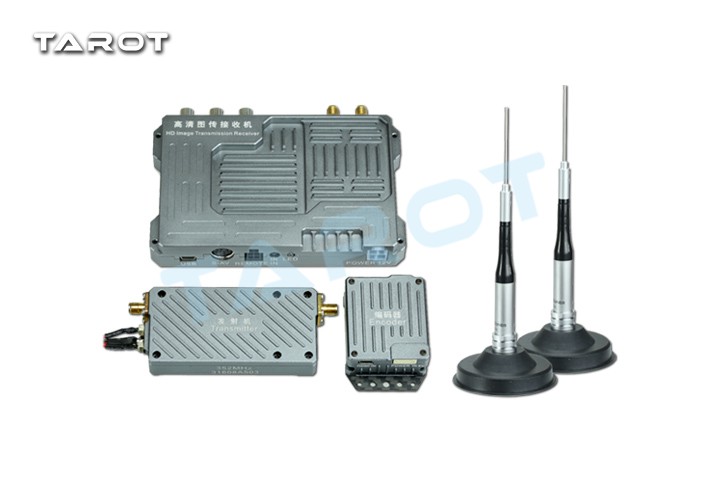

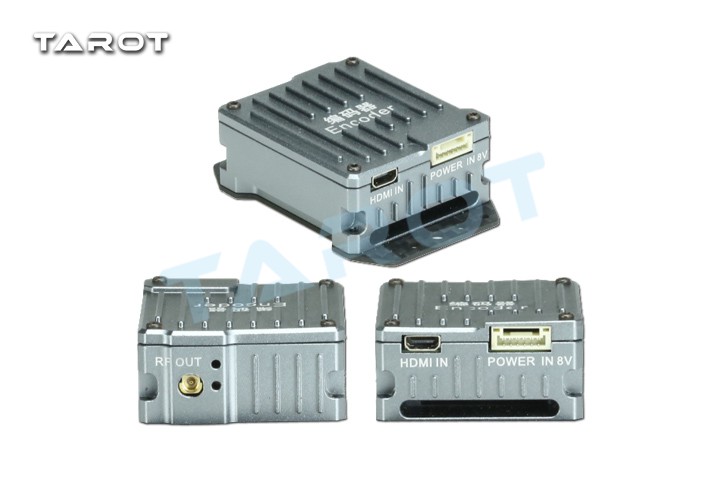

The encoder (46 × 38 × 19mm) 35g × 1

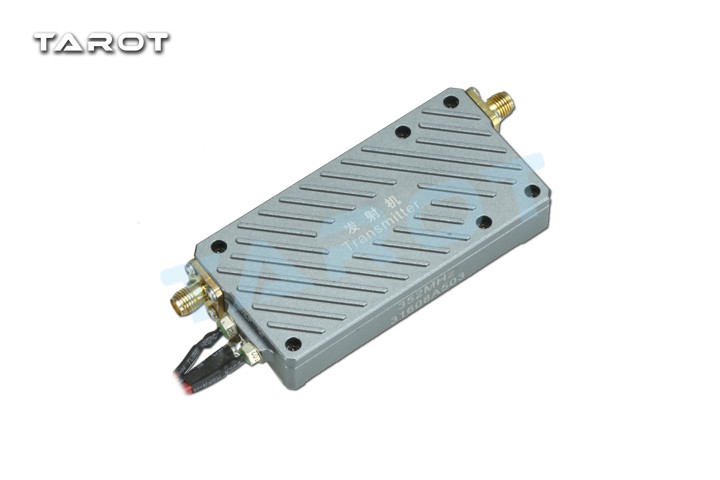

A transmitter (99 × 40 × 15mm) 64g × 1

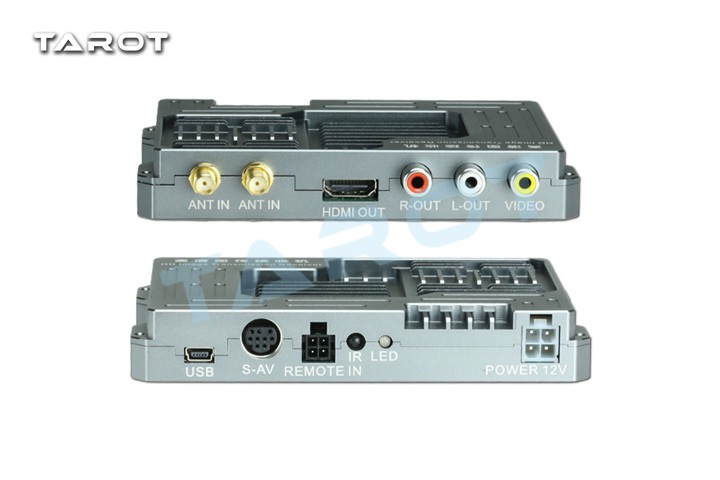

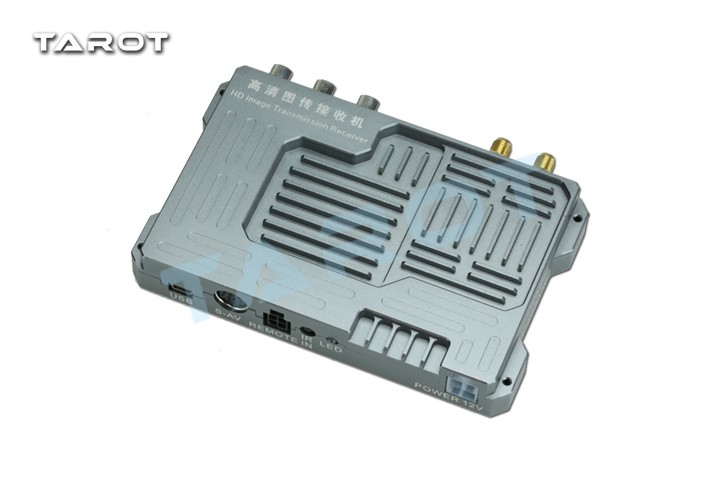

The receiver (124 × 85 × 20mm) 147g × 1
Transmitter antenna × 1
Receiver antenna × 2
Receiver antenna sucker × 2
Mirco HDMI cable × 1
MCX-SMA cable × 1
SMA male to SMA female connector cable × 1
SMA male to SMA male connector cable × 1
SMA male to SMA female elbow × 1
Filter × 1
Receiver equipment × 1
