Tarot mini 5.8g 25mw picture one machine TL300M5

  • Model: TL300M5
  • Shipping Weight: 50g
  • 996 Units in Stock


Add to Cart:

product manual:

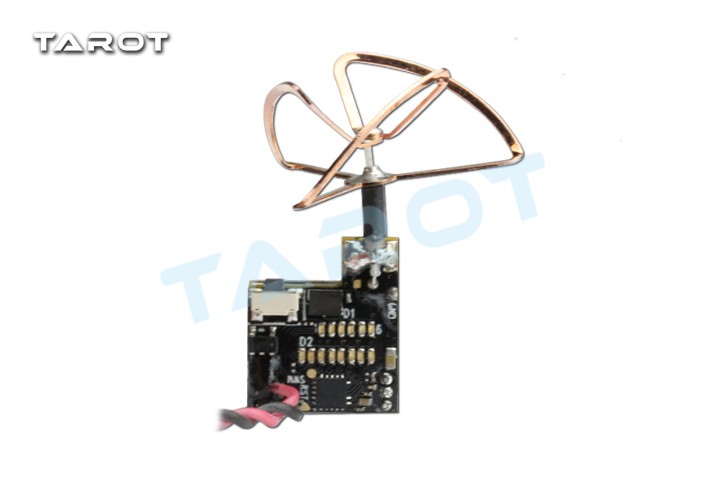

This product is a 5.8G wireless image transmitter one machine, compatible with all 5.8G reception and 600TVL, with a miniature and light weight design, wide-angle lens. Weighs only 4g, small size, support key selection frequency, especially for FPV competition, small unmanned aerial vehicles and other fields.
(Note: the working voltage is 1S, less than 5.5V)
Product parameters:
Frequency: 5.8G
Channel: 48CH
Transmitting power: 25mW
Operating voltage: 2.5V-5.5V
Working current: 350mA
Sharpness: 600TVL M7 lens
Wide angle lens: 120 ° FOV, 150 ° DFOV
Image format: NTSC
Channel control: a button (key for the channel to increase the function)

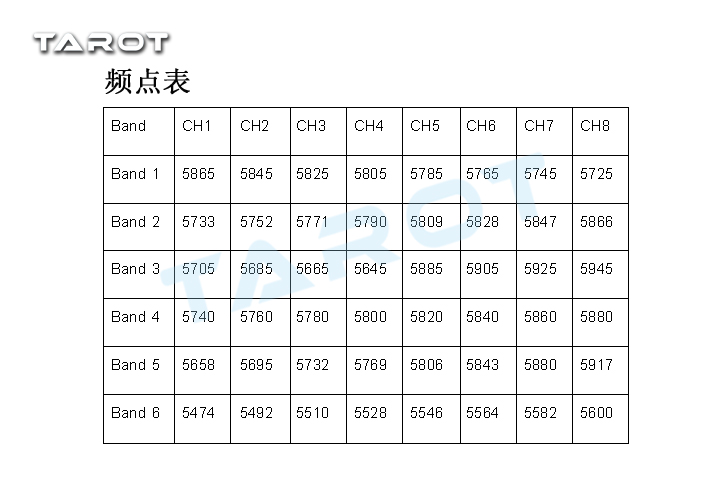

There are two sets of LED lights:
A group consisting of 6pcsLED red light is composed of BAND
A group consisting of 8pcsLED blue lights on behalf of CHANNEL
The default frequency for the first power-up is: 5865, the default is the first group of BAND
Short press the button to adjust the channel; long press button 2s, you can adjust bands, a memory function.
Product Specifications:
Mini 5.8g 25mw Figure One machine × 1 (15 × 12.5MM)
Weight: 2.8g (without antenna), 4g (including antenna)
