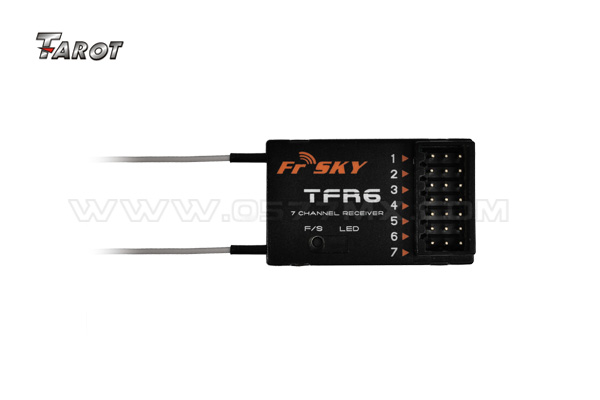

Tarot TFR6 2.4G compatible FUTABA 7-channel receiver TL2705

  • Model: TL2705
  • Shipping Weight: 30g
  • Units in Stock: 995

¥199.00


【product manual】
Suitable for Futaba fasst 2.4 G 6EX, 7C 2.4 g, 8fg, 10CG, 12FG, 12Z, 14MZ
1. Introduction
1.1 Compatibility:
Compatible with all Futaba FASST 2.4G and control module (except gun control, such as 3PK, 4PK)
Compatible FrSky TF module (TF-8M, TF-14M)
1.2 Specifications:
Number of Channels: 7 channels
Voltage range: 3.5V ~ 10V
Size: 37mm * 22mm * 8mm
Weight: 7.8g
1.3 features:
1) lighter, smaller;
2) two selectable failsafe settings.
2. Set:
2.1 pairs of code procedure:
Open the control, hold TFR6 receiver F / S button and then the power. When the red light on the receiver is off,
When the green light, indicating success of the code.
2.2 Failsafe settings:
TFR6 receiver has two selectable failsafe options: one is compatible lost control on itself
Control protection settings, and the second is to set failsafe on TFR6 receiver.
2.2.1 Use original runaway protection is provided on the control:
If you do not shut out of control protection on the original control, TFR6 will use the failsafe control itself.
2.2.2 Setting failsafe on TFR6:
TFR6 supports full channel failsafe function. Here is TFR6 setup steps out of control protection:
1) TFR6 receiver after the code is successful, enter the control settings menu, turn off the control of the original loss
Control protection settings;
2) out of control any channel set to any value in TFR6 receiver protection;
3) Hold TFR6 receiver F / S button on the receiver when the green light flashes twice, indicating that the runaway
Protected Setup was successful.
If you no longer need the protection of this out of control, just re-code can be.
If you do not turn off the control of the original failsafe, TFR6 will give priority to the use of control that comes out of control protection.
2.3 Receiver mode:
Red light                             green light                                             mode
Off the normal                      operating                                               mode
Liang                                       Liang                                              waiting for code
Flashing                                   light                                                    signal is lost
Bright                                      flash twice                                          failsafe settings
