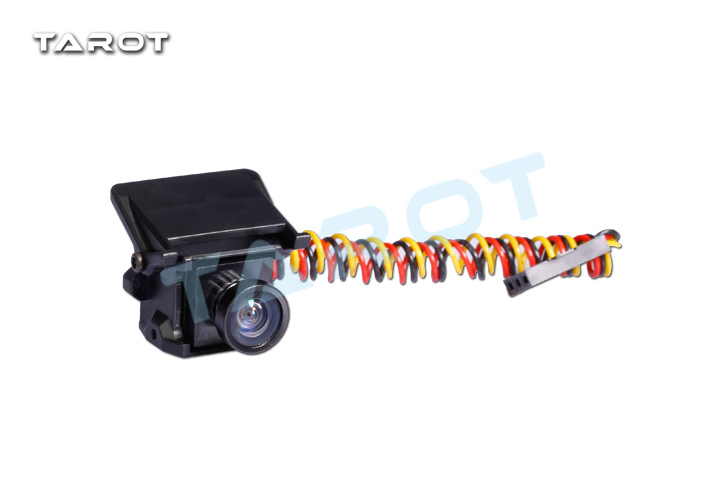

Mini FPV Small ultra light HD camera 5-12V NTSC

  • Model: TL300MN2
  • Shipping Weight: 30g
  • Units in Stock: 977

¥178.00

Product description:

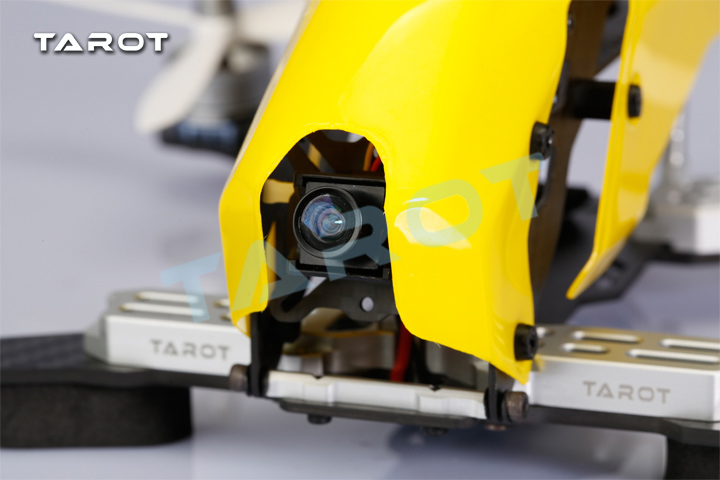

TAROT custom Mini 520TVL mini light color high-definition camera (FPV aerial camera) the level of 120 degree high definition wide-angle lens, applicable in the field of mini200/250/300 small through the machine, FPV model aircraft aerial, monitoring. Product volume is small, light weight about 5g, built-in buck module, no need to buck, can be directly connected to the 2S-3SV lithium polymer battery (5V-12V) power supply use.
Connecting line description:
Red line: DC (5V-12V) power input
Black line: the power of the negative and the video ground
Yellow line: AV video signal output
Related product number:
5V-12V aerial camera NTSC system TL300MN
5V-12V aerial camera PAL system TL300M
FPV 5-12V Compact Ultra Light HD camera PAL Mini standard TL300M1
FPV 5-12V Compact Ultra Light HD camera NTSC Mini standard TL300M2
Product parameters:
Clarity: Lines 520TV (hd)
Active pixel: NTSC=720 (H) x 487 (V)
Video format: NTSC/PAL
Photosensitive chip: inch HD Color CMOS 1/4
Video output: 1.0Vp-p/75
Lowest illumination 0.008Lux (ultra low illumination)
Power consumption: 40MA 10%
Working voltage: DC5-15V 10%
Synchronization system: internal synchronization
Signal to noise ratio: greater than 50dB
Electronic shutter (N) 1/60-1/10000s, (P) 1/50-1/10000s
Working temperature: 0 ~45
Product specifications:

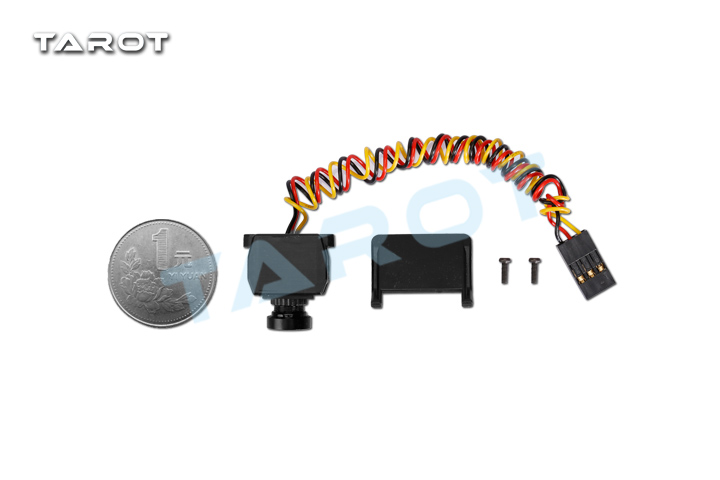

520TVL small HD color camera x 1 (15 x 20 x 22mm + 1mm) 5g

Add to Cart:



This product was added to our catalog on Saturday 05 September, 2015.
