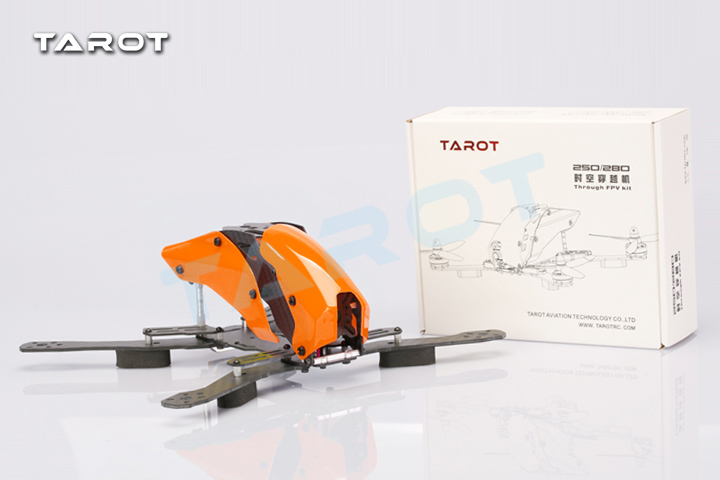

280 time and space traversing machine FPV semi carbon TL280H

  • Model: TL280H
  • Shipping Weight: 500g
  • Units in Stock: 975

¥185.00

Product description:
Tarot FPV time travel machine applicable to a variety of environment and through the flight, to novel visual feeling, bring extraordinary through experience. The overall design of the Tarot used to inherit the characteristics of the top with a unique smooth way over, the side of the outline of the air intake, with good aerodynamic performance.
PET smart shell colors eye-catching, cover folding design, let the repair become more convenient. Tarot CNC powerful metal processing capacity, so that all connections are used tenon structure design. Can be free to adjust the camera angle, quickly remove lock tight design, antenna spacing, lightweight machine and other many ingenuity to the best, can in the cross machine found success.
Recommended electronic equipment model:
Brushless motor: 2204 TL400H
ESC: TL300G2 required, required UBEC power TL2681/ hobbywing TL300G
Rotor size: 6 inch TL300E
Camera: PAL standard; TL300M/TL300M2 Ntsc system; TL300MN/TL300MN2
MINI CC3d through the flight control
5.8G wireless map: TL300N / TL300N2
5.8G group: TL300K/TL300K2
Lithium polymer battery: format 11.1V/2200MAH (size less than the following requirements)
Pay attention to battery size specification: length 70-120MM/ width 37MM/ height 27.5MM
Related product number:
250 time travel machine FPV carbon fiber TL250C
280 time travel machine FPV carbon fiber TL280C
250 time and space traversing machine FPV semi carbon TL250H
280 time and space traversing machine FPV semi carbon TL280H
250 time travel machine power set TL250CT carbon fiber
280 time travel machine power set TL280CT carbon fiber
250 time and space traversing machine semi carbon power suit TL250HT
280 time and space traversing machine semi carbon power suit TL280HT
Product parameters:
Wheelbase: 280MM
Air frame height / total height: 90.4MM
Empty rack length / total growth: 220MM/340MM
Empty frame width / total width: 252MM/370MM
Air machine weight: 143G
Product specifications:
Through the body x 1
JST plug x 1
70MM servo line x 2
XT60 plug x 1
Battery magic stick x 1
Battery bar x 1
Chinese and English instruction manual x 1

Add to Cart:



This product was added to our catalog on Saturday 05 September, 2015.
