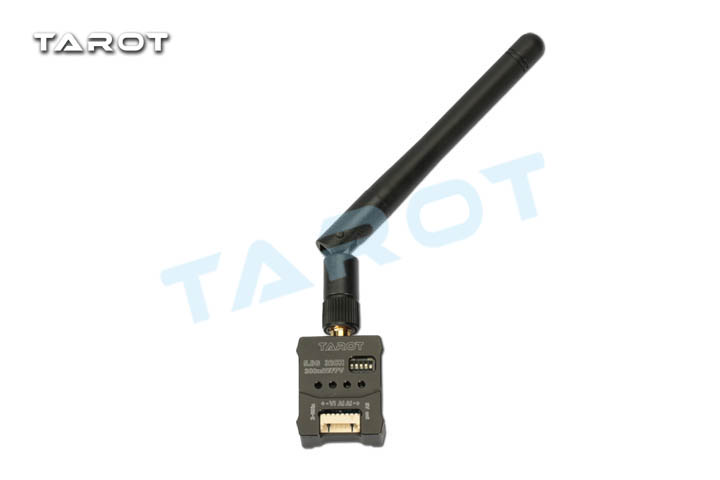

TAROT independent development of 32 frequency points! 300mw 5.8g image transmission system with super mini size and light weight form factor, using 6061T6 aluminum alloy case for heat dissipation, especially for small-scale multi-axis rotary wing aircraft as well as the current through the machine. 32 conventional frequency compatible frequency, provide a video signal, 2-way audio signal long-distance transmission, in addition to providing 5V1A power output (can be used for image overlay, video cameras supply. Please make sure the voltage and current to prevent burn-related equipment) which the transmitter weight Only 8.3g (excluding antenna)
Detailed transmitter parameters: Specifications:
1, NW 11G (excluding antenna) Weight: 11G (without antenna)
2, the volume of 23.5 × 363 × 12.5MM Dimension: 23.5 × 363 × 12.5MM
3, transmission frequency: 5645-5945MHZ / Working Frequency: 5645-5945MHz
4, number of channels: 4 bands, a total of 32 channels Channel: 4 bands / 32 channel
5, the channel selection: 5 mini DIP switch 5-DIP switch
6, transmit power: 27.5 dbm (300mw) Output Power: 27.5 dbm (300mw)
7, the input voltage: 7-26V DC (2-6S) Input Voltage: DC 7-26V (2-6S)
8, the output voltage: 5V 1A / Output Voltage: 5V 1A
9, antenna interface: RP-SMA <external thread + needle> 50Ω / Antenna Adaptor: RP-SMA 50Ω
10, the working environment temperature: -10 to 60 degrees Celsius. Working Temperature: -10 ~ 60 degrees.
11, the modulation type: FM Frequency: FM
1、Install the antenna before connecting the power to avoid further damage.
2、Choose proper working frequency and tune the receiver to the same frequency. Please refer to the channel list.
3、Do not touch the surface of transmitter while operating. It is normal the surface is getting hot.
4、The input voltage range is between 7-26V (2-6S), do not overload the working voltage.
5、The output voltage is 5V1A. Please confirm the current and voltage of the camera
tarot 5.8G FPV audio and video transmitters × 1
7P color strip line × 1
5.8g transmitting antenna × 1
Manual × 1
This product was added to our catalog on Wednesday 07 October, 2015.
