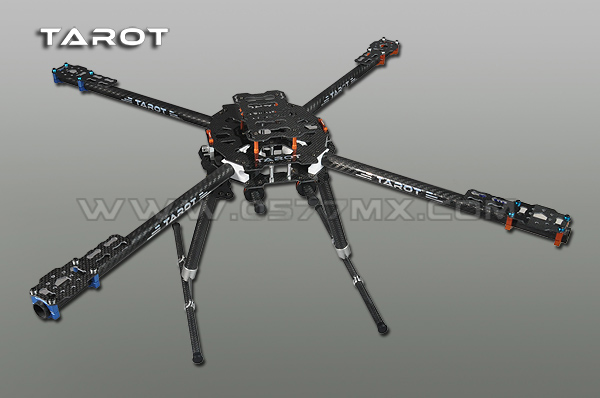

Tarot IRON MAN 650 full-folding four-axis vehicle rack TL65B01

  • Model: TL65B01
  • Shipping Weight: 1500g
  • Units in Stock: 412

¥559.00

Product description:
     Toray 3K carbon fiber cloth woven carbon fiber board with 3K hollow twill pure carbon fiber carbon fiber tube (non-3K glassy carbon tube) CNC machining, design standards higher than similar products, the full set of rack weighs only 476 grams. Full folding design, installation designed for users with high portability requirements, aerial PTZ hanging before, and can slide on the beam, the installation location of the battery is also for regulation, the user can flexibly according to the weight of the loaded photographic equipment adjust the center of gravity. Particularly suited to do surveillance, remote sensing, mapping, aerial reconnaissance, fire observed explore life cable line patrol, farm monitoring, and other the mobile performance requirements equipment load and need more application areas left blank Air.
"Detailed specifications read related accessories Description
Recommended Configuration 1: gopro configuration (recommended)
180-250W Motor +20 A ESC the +4 S 5000 battery +10-12 inch propeller
Recommended configuration: micro single configuration (generally recommended)
300-400W Motor +30 A ESC the +4 S 5000-10000 battery +12-14 inch propeller
Recommended configuration: SLR configuration (not recommended)
400W motor +40 A ESC +6 S 5000-10000 battery +14-17 inch propeller

Supporting optional products:
Tarot 2212/920KV multi-axis high efficiency brushless motor / red TL9014
Tarot 2212/920KV multi-axis high efficiency brushless motor / Blue TL9013
The folding tripod TL68B11 of FY680 six-axis aircraft
The FY680 six-axis aircraft flip the battery rack TL68B14
650 carbon fiber four-axis battery plate TL65B03 of
650 carbon fiber four-axis up and down cover TL65B04
For 22MM TL65B05 of M2.5H5 hexagonal aluminum column
Φ10MM 3K plain carbon tube (200MM) TL65B06
The the M16 flight seat motor mount / orange TL68B08
Φ16MM 3K pattern matte pure carbon tube TL6809-2
The M10 metal silicone damping Seat TL68B10
16MM carbon tube folding the positioning seat plastic components TL68B04
Four-axis, six-axis, DIY tripod TL8201
Φ16MM carbon fiber GPS holder TL68B13

Add to Cart:



This product was added to our catalog on Friday 25 January, 2013.
