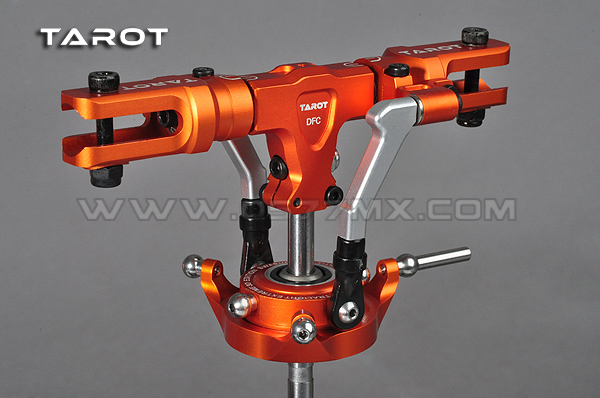

Tarot 450DFC points of body Lock rotor head assembly / orange

  • Model: TL48025-03
  • Shipping Weight: 200g
  • 954 Units in Stock

$27.10

Add to Cart:





Product description:

DFC rotor head for TAROT450 DFC (TL45162/TL48025) and DFC rotor head other modifications.

Independent innovation the inclined push rod structure design, unique hinged balanced rolling moment.

6061-T6 aluminum CNC multi-axis machining technology.

Trapezoidal horizontal axis washer can better pass rubber biasing load.

The ultra-low center of gravity and shorter spindle design, the the rotor level close to the body's center of gravity.
New DFC main rotor holder using a three-point V-shaped spindle lock design.

The new DFC Main Rotor Housing and main rotor holder top laser scale line.

DFC strengthen horizontal axis pad 85 ° superhard rubber forming one
The new design of large-size bearings folder seat center thrust bearing.

New Anti-shot horizontal axis overall tensile design 480 specifications.

Thrust bearing mounting need to pay attention to the, IN outside diameter of the retaining ring be installed close to the location of the Vanda, which can effectively smooth
Slip transfer Rally. Thrust bearing steel copper concave inwardly, in order to prevent lubricating oil thrown.

Relevant supporting ID:

450 DFC Anti-shot horizontal axis TL48009

450 new large bearing Moderator rotor holder main group TL48013

450DFC Locking main rotor holder TL48018

450DFC main rotor holder connected arm TL48026

450DFC tilt rod TL48027

450DFC horizontal axis washer TL45000

450DFC horizontal axis washer TL45167

Specifications:

450DFC Main Rotor Housing Set x 1
450DFC spindle x 1 [108MM]
450 DFC the abscissa washer x of 2 (Φ4xΦ7.0x4.0mm)
The 450 DFC spindle locking collar screw x 1 (M2.5 x10.5mm)
M 2.5 slip nut x 1

The metal bearing Moderator rotor holder × 2

Bearing × of 2 (Φ4.0xΦ8x3.0mm)
Thrust bearing ×. 2 (Φ4.0xΦ9x4.0mm)
Washers × 2 (Φ4xΦ6.5x0.5mm)
Bearing × of 2 (Φ4.0xΦ9x4.0mm)
Washers × 2 (Φ2.5xΦ4.5x0.3mm)
Cup head hexagonal screws x 2 (M3 × 15MM)
M3 slip nut × 2
The 450 DFC Anti shot horizontal axis TL48009 (Φ4.0x54.0mm) × 1
450 metal DFC main rotor holder connected arm x 2
The franc bearing x 2 (Φ2xΦ5x2.5mm)
Plane bearing x 2 (Φ2xΦ5x2.5mm)
The M2.0 Cup head the hexagonal screw x 2 (M2.0x9mm)
, Cup head screw, M2.0 x2 (M2.0x5mm)
The 450 metal DFC tilt link x 2
M2.5 only the vent screw x 2 (M2.5x10mm)
500 DFC Main Rotor ball head buckle TL50186 x 2
The M2.0 Cup head Hexagon collar screw x 2 (M2.0x15mm)
