We use a unique carbon fiber prepreg inner pressure molding process. Product curing process takes about 300 minutes, the final curing temperature of 125 ° C, slowly boost the entire curing process mode, the maximum pressure up to 3mpa. This production process can make the product discharge excess resin and volatiles from the inside out, reduce porosity CFRP article (≤2%), to obtain satisfactory interlayer adhesion, while achieving weight reduction purposes, to ensure the structural strength of the product propeller and quality to meet the design requirements. Whereby the unique technology of the product to achieve a high strength, light weight, which allows the use of such propeller aircraft for longer blank time, while improving the vehicle's handling. According to our test comparison, our propeller than other similar products to enhance the energy efficiency of more than 8%.

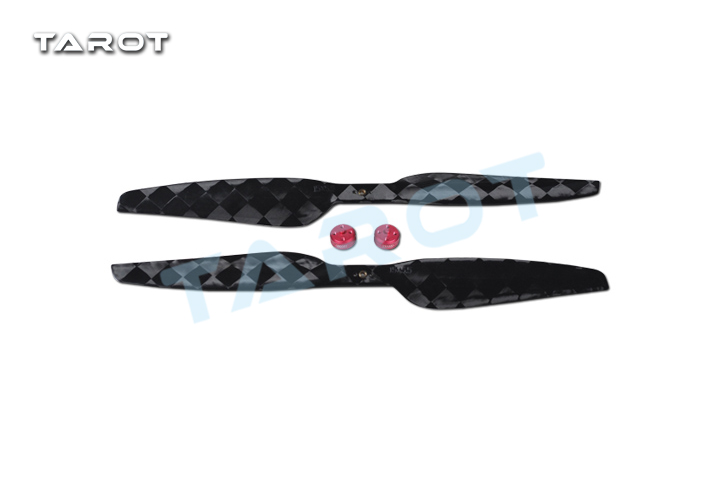

N 15-inch carbon fiber paddle 18.5g × 1
15-inch carbon fiber propeller reverse 18.5g × 1

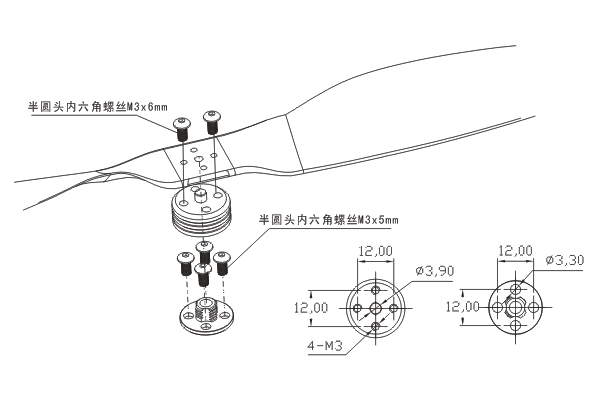

Quick release paddle Theravada × 2 (19.5 × 11.5MM) 2.5g
Quick release paddle Xiazuo × 2 (18 × 7MM) 1.2g
M3 × 6MM round head screws 0.4g × 4
M3 × 5MM round head screws 0.4g × 8
This product was added to our catalog on Saturday 10 September, 2016.
