It is self-evident importance of heat dissipation of brushless motor, the major brands have their own design form, both have advantages and disadvantages. Cooling fan type is the most effective way is very difficult to carry out processing and manufacturing.
Based on the disadvantages of traditional motor cooling system, TAROT to exquisite CNC metal processing technology, to create a series of 22 fan type brushless motor, solved the problem of heat dissipation of the motor in the best way, effectively enhance the conversion efficiency of the motor.

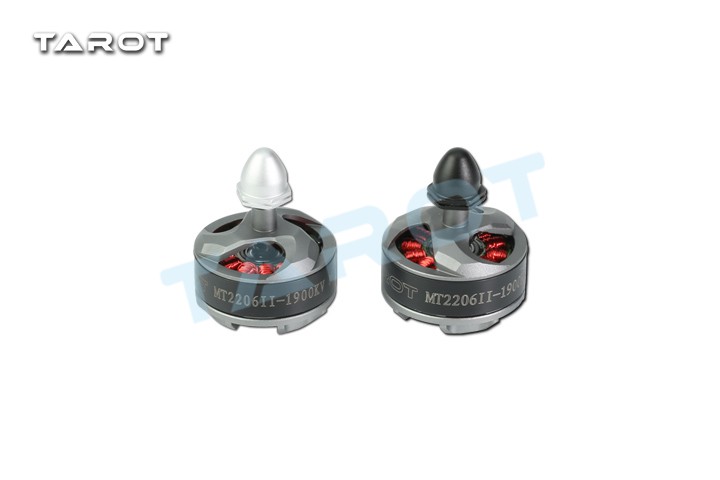

Tarot MT2206 II -1900K fan type brushless motor for 250/300 and other sections of the multi axis cross machine. MT2204 no center of gravity of the brush motor is extremely low, the 0.20mm ultra-thin high efficiency silicon steel sheet, primary axis propeller clamp structure) the concentricity can be assured of the best. The active powder pad design with high efficiency fan type motor cover, to obtain a lower working temperature means higher working efficiency.
MT2204 brushless motor has excellent dynamic balance performance, each motor before shipment all after high precision dynamic balancing test, to ensure the stability of operation of the motor. The motor base mounting holes 16MM/19MM, compatible with the current market mainstream rack installation, retains the appearance and consistency of traditional motor, high hanging to protect the coil from.
The State Intellectual Property Office has been awarded the product patent TAROT HM Co. ltd.. Any unit or individual not by holders of authorization, manufacturing, copy, use, the sale of infringing the products will face patent infringement litigation.
Support lithium section number: 3S
Install the propeller shaft diameter: 5MM
Propeller: 6-7 inch three blade
Stator diameter: 22MM
No load current: 0.4A-0.8A
Stator thickness: 6
Stator end number: 12
The Ma Daji number: 14
Speed: 1900KV + 5%

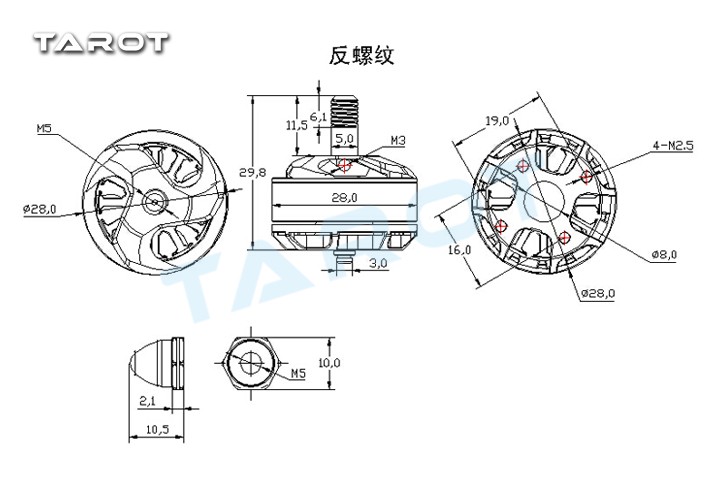

Motor external diameter: 28MM
Axis diameter: 3MM
Motor height: 36MM
Motor weight: 28G

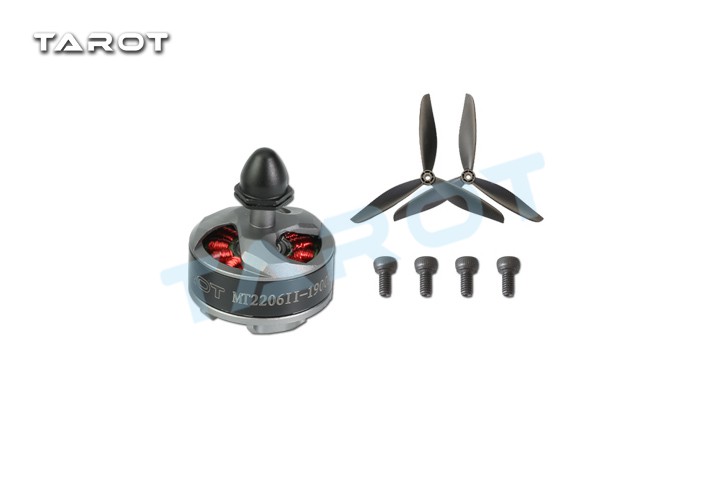

MT2206 III self locking anti screw motor x 1
M2.5 * 5MM cup head six angle screws * 4
7 inch blade / pair / Black
