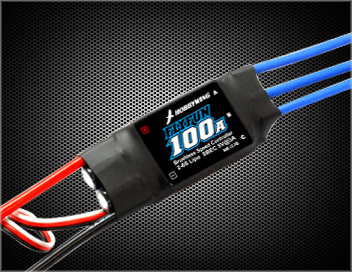

hobbywing Pentium-100A Brushless ESC

  • Model: Pentium-100A
  • Shipping Weight: 100g
  • Units in Stock: 995

¥305.00







Product Specifications:
1, the output capacity: Continuous current 100A, short-time current 120A (less than 10 seconds);
2, Power input: 2-6 lithium batteries or Section 5-18 NiMH / NiCd battery pack;
3, BEC output:
      ● FlyFun-100A: 3A (switching power mode -switch mode)
      ● FlyFun-100A-OPTO: None
4, throttle signal frequency range (Refresh rate): 50Hz - 432Hz;
5, maximum speed: 2-pole motor 210,000 rev / min, 6-pole motor 70000 rev / min, 12 pole motor 35000 rev / min;
6, Size:
      ● FlyFun-100A: 83mm (length) * 31mm (width) * 16mm (H);
      ● FlyFun-100A-OPTO: 83mm (length) * 31mm (width) * 14mm (H);
7 Weight:
      ● FlyFun-100A: 76.2g (including heat sink);
      ● FlyFun-100A-OPTO: 73g (including heat sink);
8. Accessories: parameter setting card (optional);

Product Features:
1, safe power function: power, regardless of the position of the throttle stick in any motor will not start immediately, to prevent injury;
2 Throttle range calibrated function: the remote control to adapt to differences in different throttle range, improving throttle response linearity;
3, programmed items:
      ● Brake setting: no brake / with brake;
      ● Battery Type: Li-xx (Li-battery) / Ni-xx (nickel-cadmium or nickel metal hydride);
      ● Low Voltage Protection Mode: Reduces power on / off output;
      ● Low Voltage Protection Threshold: low / medium / high;
      ● Start mode: Normal / Soft / Super-soft and starting;
      ● Timing: low / medium / high;
      ● Restore factory defaults;
4, comprehensive protection features:
      ● voltage protection: programmed by the user when the battery voltage is lower than the protection threshold, ESC automatically reduces the output power;
      ● Overvoltage protection: the input voltage exceeds the input range allows not start, automatic protection, also issued a hasty "beep" warning tone;
      ● overheat protection: Built-in temperature detection circuit automatically reduces the output power when the ESC temperature is too high;
      ● remote control signal loss protection: remote control signal to reduce the power loss of 1 second, 2 seconds then there is no remote control signal disables the output;


Process characteristics:
1, ultra-low power input impedance using ** bulk electrolytic capacitor, which greatly improve anti-jamming capability;
2, the control circuitry and power tube (MOSFET), respectively, using a separate printed circuit board, with a strong resistance to high current capability;
3, the output power MOSFET with a separate heat sink, heat dissipation area large enough to reduce the device temperature, high-current ability to work to improve the system;
