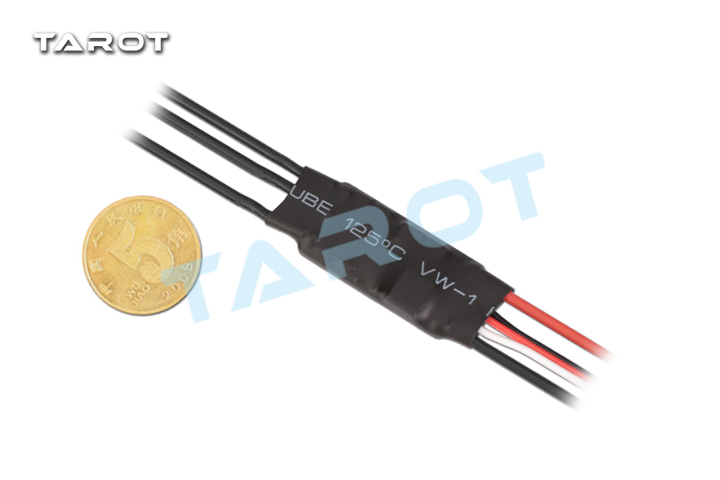

12A ESC mini genuine original components are used to ensure high quality and good resistance to the flow of power transfer capability. Supports refresh rates up to 500Hz maximum throttle signals, compatible with a variety of flight control (Note:> = throttle signal of 500Hz are all non-standard throttle signal); Support OneShot125; the use of powerful, high-performance MCU; smaller size, weight and more lightweight design; specifically for disc motor optimized firmware, compatibility is very good; specifically designed for multi-rotor program, flight responsive throttle adjustment; strong adaptability firmware retain four items into the corner design, using extremely simple, taking into account the stability and battery life.
With boot protection, overload protection, throttle signal loss protection.
Continuous operating current: 12A
Instantaneous current: 18A
Number lithium applicable section: 2-4s
Length x width x thickness: 28 × 15 × 6MM
BEC (Linear): 5V / 1A
Weight With cable: 9.5G

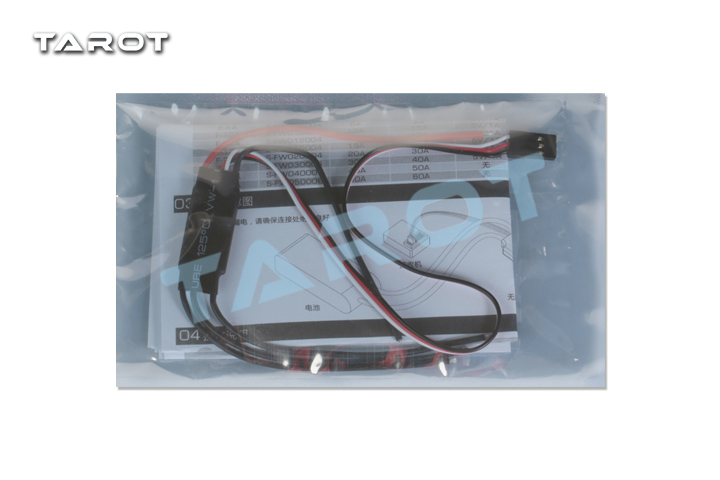

12A Mini ESC (including BEC) X 1PCS
This product was added to our catalog on Sunday 08 November, 2015.
