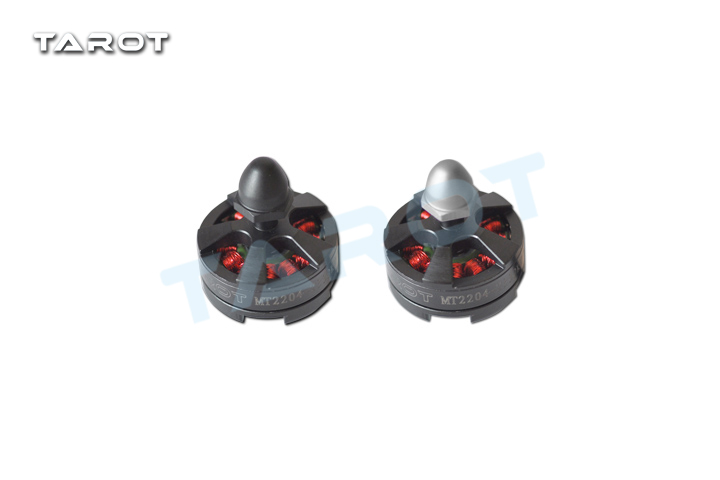

Tarot MT2204 self-locking ccw motor / black hat TL400H5

  • Model: TL400H5
  • Shipping Weight: 100g
  • Units in Stock: 932

¥41.00

product manual:
Tarot 2204-2300KV self-locking multi-axis brushless motor suitable for 280/300 and other crossing machine. Tarot optimizes this brushless motor, its center of gravity lower and more consistent across the multi-rotor aircraft design requirements.
MT2204 brushless motor with 0.20mm ultra-thin high-efficiency silicon steel, the use of thin silicon steel motor with low heat to make more efficient features. Propeller mount with the motor cover using the integrated molding process, forming one threaded spindle motor cover, can be installed directly paddle clips (native propeller shaft folder structure) its concentricity can get the best guarantee. Motor cover with high efficiency active bulk pad designed to achieve lower operating temperature means higher productivity.
MT2204 brushless motor has a balancing performance, every single motor ship before the whole system have been detected with high precision balancing test, in order to ensure the stability of the motor running time. Base mounting holes Motor 16MM / 19MM, compatible with mainstream rack-mount on the market today, retains the look and consistency of conventional motor, high-floating coil protection.
Product parameters:
Number of battery section Support: 3S
Paddle mounting diameters: 5MM

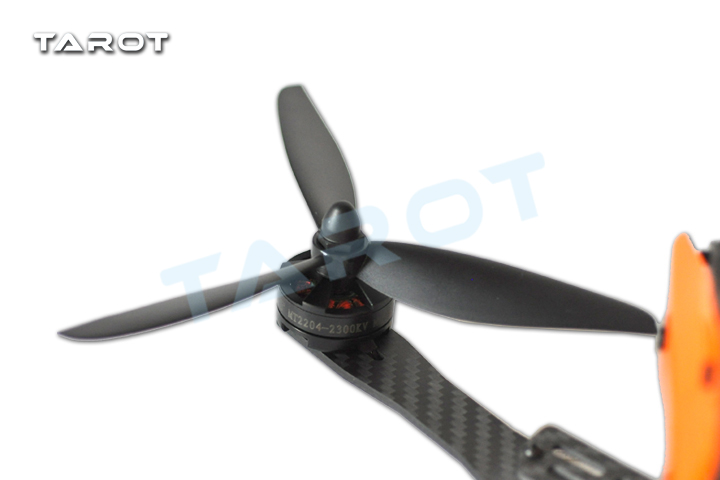

Propeller: 6 inch clover paddle TL300E
White resistance: ≤4mΩ
Stator diameter: 22MM
Load current: 0.4A-0.8A
Stator Thickness: 4.0
Stator: 12
Motor poles: 14
Speed: 2300KV ± 5%

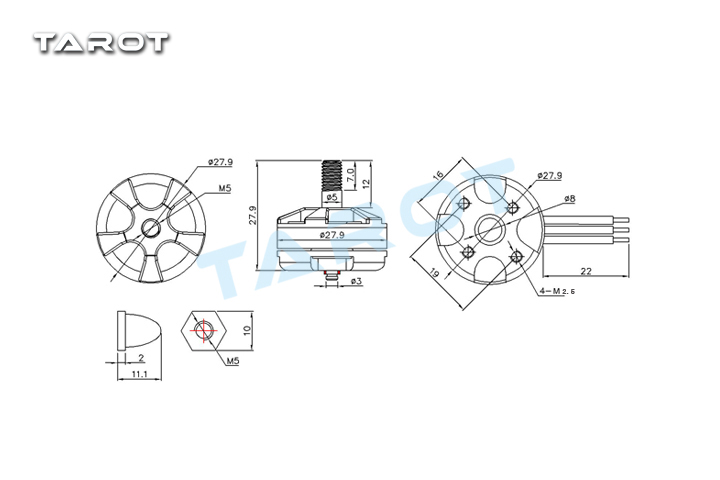

Motor outer diameter: 28MM
Axial Diameter: 2MM
Motor Length: 39MM
Motor Weight: 24.5G
Product Specifications:
MT2204-2300KV self-locking anti-thread motor × 1
Within M2.5 × 5MM cup head hex screws × 4
6 inch paddle clover / couple / black TL400E6
