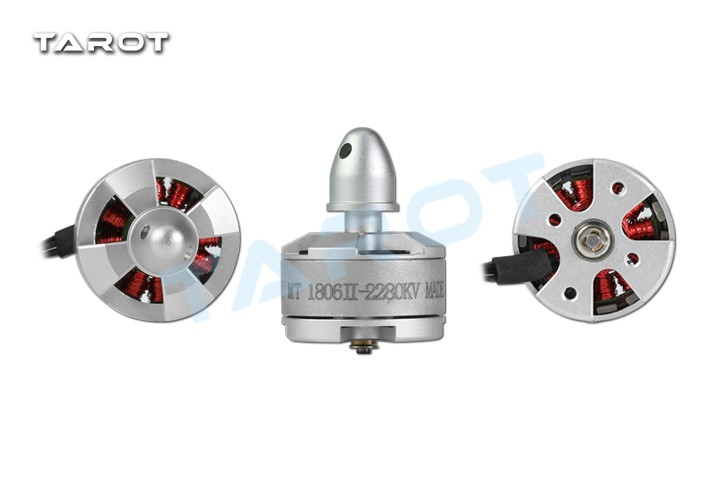

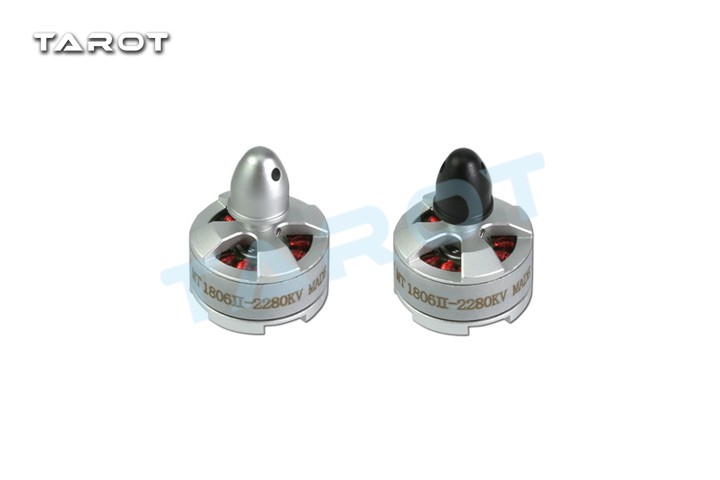

MT1806II positive self-locking screw motor / silver cap

  • Model: TL300H6
  • Shipping Weight: 50g
  • 959 Units in Stock


Add to Cart:

Product description:
Tarot 1806 II -2280KV self lock brushless motor suitable for 180-250 and other multi axis through the machine. Tarot optimized the brushless motor, so that its center of gravity is lower, more in line with the design requirements of multi rotor cross machine.
MT2204 brushless motor with 0.20mm ultra-thin high efficiency silicon steel sheet with thin silicon steel piece can make the motors have the characteristics of low calorific value, high efficiency. The propeller mounting base is integrally formed with the motor end cover, and the screw shaft can be directly mounted on the motor, and the concentric degree of the Zhou Yuansheng propeller clamping structure can be provided with the best guarantee. The motor is covered with a high efficiency active bulk pad design to obtain a lower operating temperature which means higher working efficiency.
MT2204 brushless motor with the dynamic balance performance, each motor before shipment are all through the high precision dynamic balance tester to ensure the stability of the motor running. The base of the motor is installed with a hole 12MM/16MM, which is compatible with the current mainstream frame installation in the market. The appearance of the motor is consistent with the traditional motor, and the height of the suspension is protected from the coil.
Product parameters:
Support lithium section number: 3S
Propeller installation diameter: 5M
Propeller: 5 inch propeller
Interphase resistance: 4m ohm
Stator diameter: 18MM
No load current: 0.4A-0.8A
Stator end thickness: 6
Stator end number: 12
Ma Daji number: 14
Speed: 2280KV + 5%

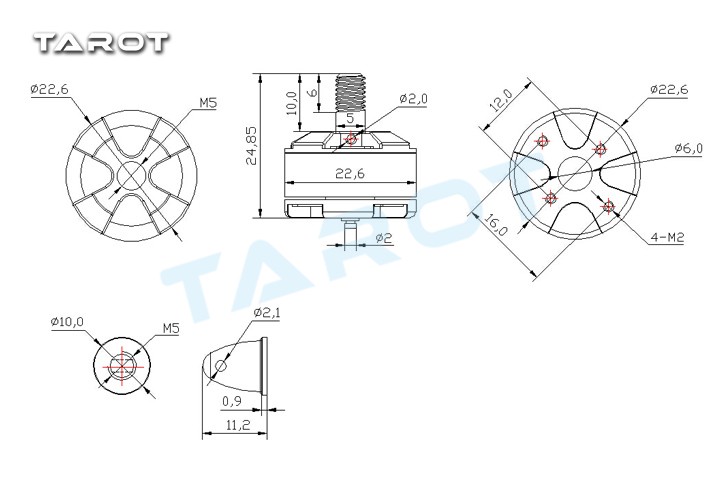

Motor external diameter: 22.5MM
Axis diameter: 3MM
Motor height: 32MM
Motor weight: 17.3G
Product specifications:

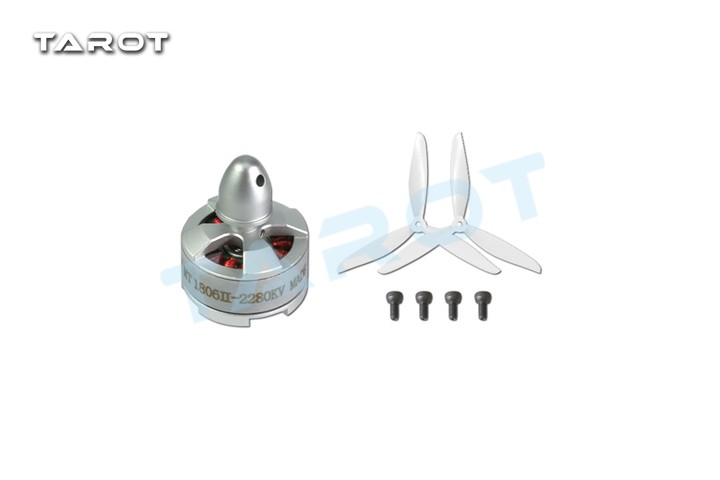

MT1806II-2280KV self locking positive screw motor * 1
M2 * 4MM cup head six angle screws * 4
5 inch blade / pair / white TL300E1

This product was added to our catalog on Wednesday 09 March, 2016.
